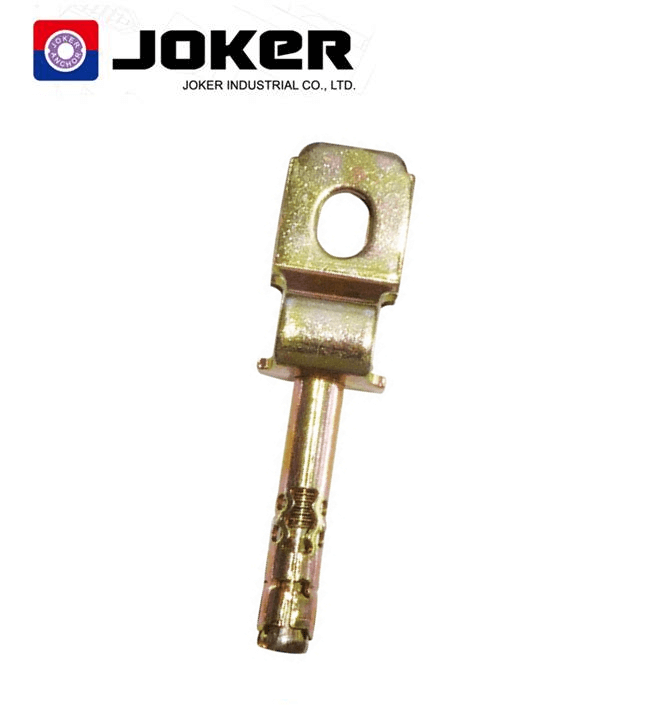

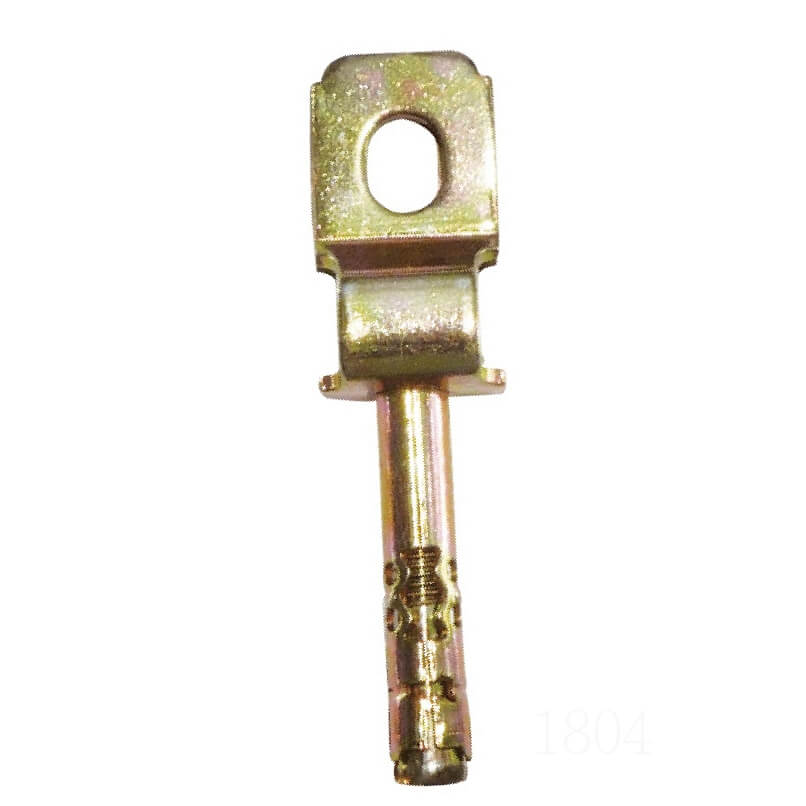

Wire hanger suspension anchor is a sleeve anchor with eyebolt for securing suspension wires in concrete. Typical applications are ceiling hanging, suspended wire display hangers, Bird wires, HVAC and air conditioning ducting.

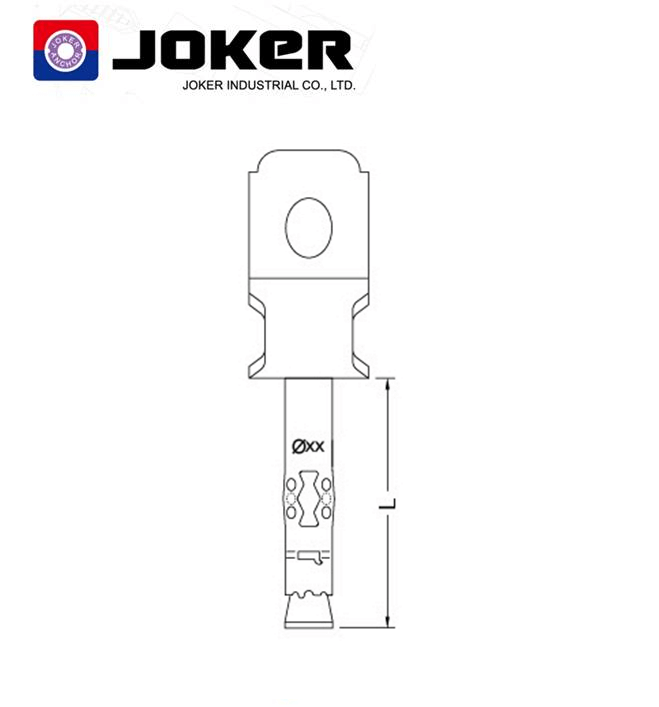

CODE NO.
SIZE
DRILL DIA.
SCREW SIZE
LENGTH
MATERIAL UP TO (mm)
SU0625
6.5X25
6.5
M5
25
12
SU0635
6.5X35
6.5
M5
35
10
  • Can be loaded immediately after installation
  • Over head applications
  • Pre-assembled anchor for easy and fast installation
  • time-saving through-fixing installation
  • Suspended ceilings
  • Metal profiles
  • Ventilation lines



Building material

Concrete, stone, brick, block

  1. Drill a hole the same diameter as the anchor diameter and at least 15mm deeper than the expected embedment.
  2. Clean out the hole of all debris.
  3. Insert the sleeve anchor into the hole in the base material until the head bottom and nut is tight against the basematerial.
  4. Turn the nut until finger tight
  5. Use a wrench to set the anchor by turning the nut three to four full turns
