sissy anchor

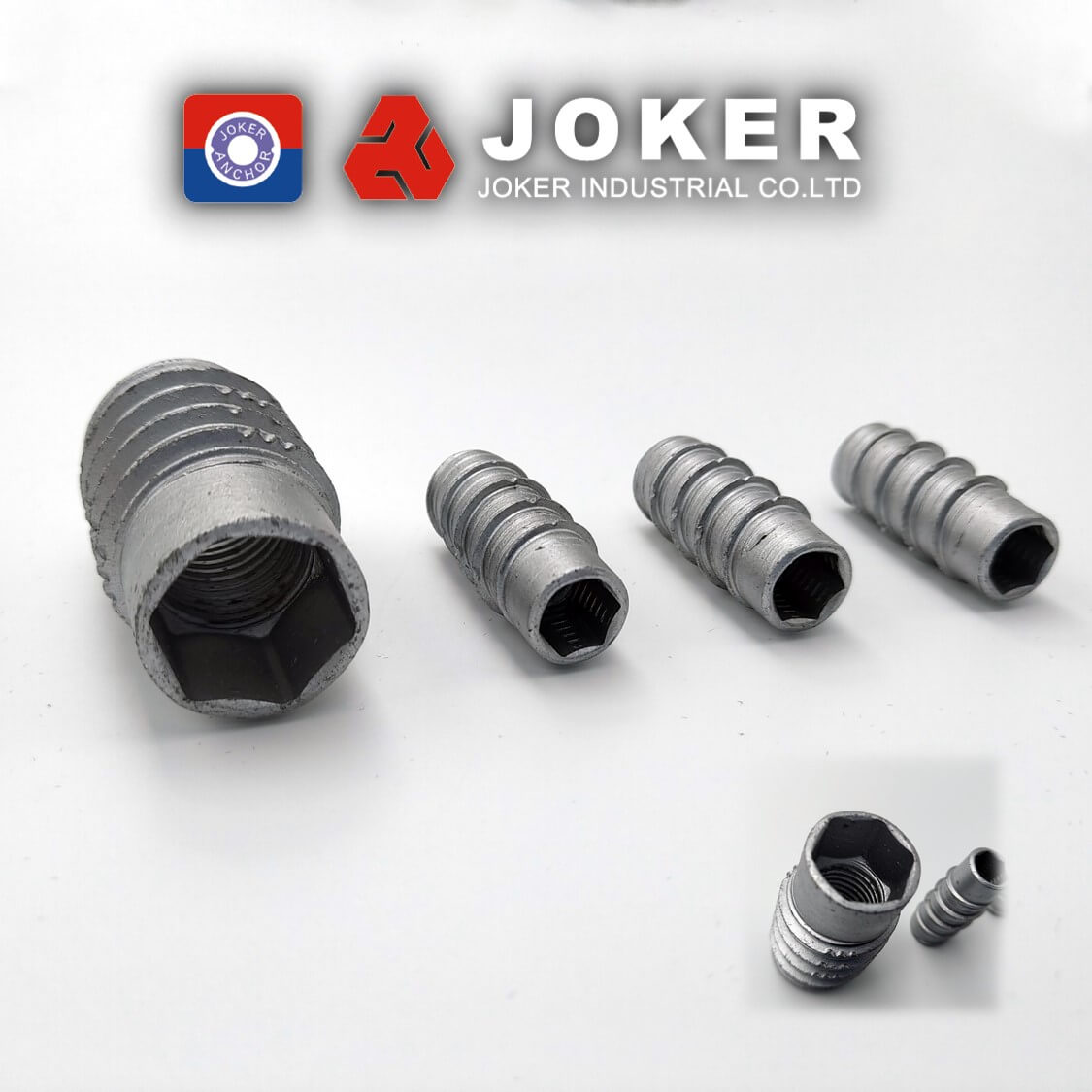

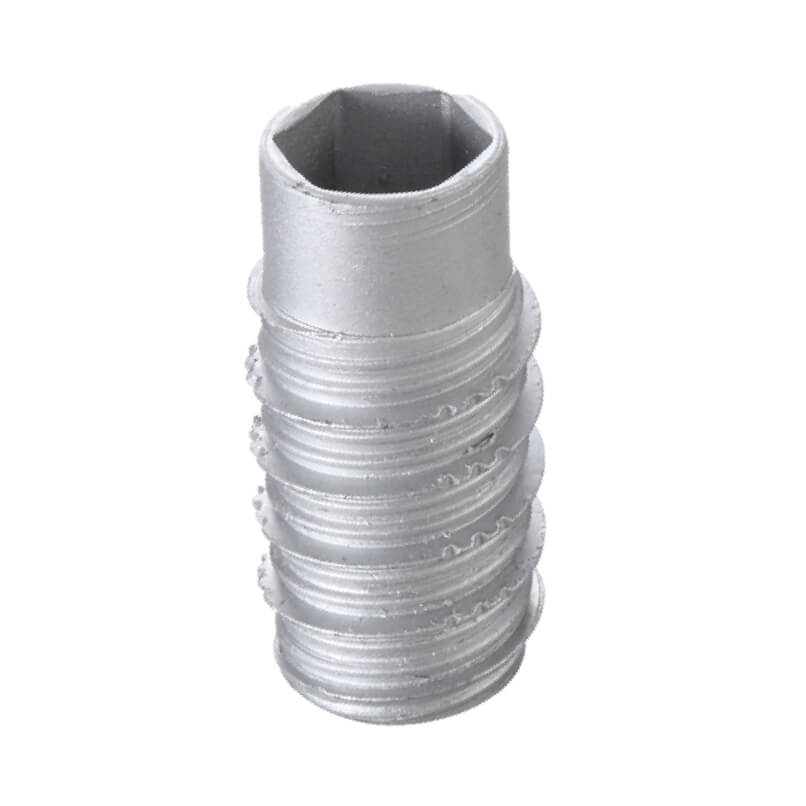

Joker sissy anchor is a most innovative self-tapping concrete socket anchor ever, it can replace drop in anchor, and it is easy to directly install in all solid base material also timber by powered impact wrench, allen key wrench and torque wrench. The standard installation of sissy anchor is flat with base material, if you want to increase the pull out loading, don’t need the longer length screws, just increase the setting depth. And the internal thread means you can use them with any metric bolt, threaded rod, fastener or component.

SIZE

DRILL BIT (mm)

HOLE DEPTH(mm)

ANCHOR LENGTH(mm)

INTERNAL THREAD

ALLEN KEY WRENCH(mm)

TORQUE WRENCH(Nm)

M5

8

33

28

M5

5

5-10

M6

9

33

28

M6

6

5-10

M8

12

37

32

M8

8

15

M10

15

42

37

M10

10

20

M12

18

47

42

M12

12

20

M16

22

48

43

M16

16

50

1/4"

3/8"

33

1-1/16"

1/4"

1/4"

5-10

5/16"

1/2"

38

1-1/4"

5/16"

5/16"

15

3/8"

9/16"

43

1-7/16"

3/8"

3/8"

20

1/2"

11/16"

48

1-11/16"

1/2"

1/2"

20

5/8"

27/32"

49

1-11/16"

5/8"

5/8"

50

Internal threaded and full through hole design anchor for easy adjustment and removability of threaded rod or bolt.

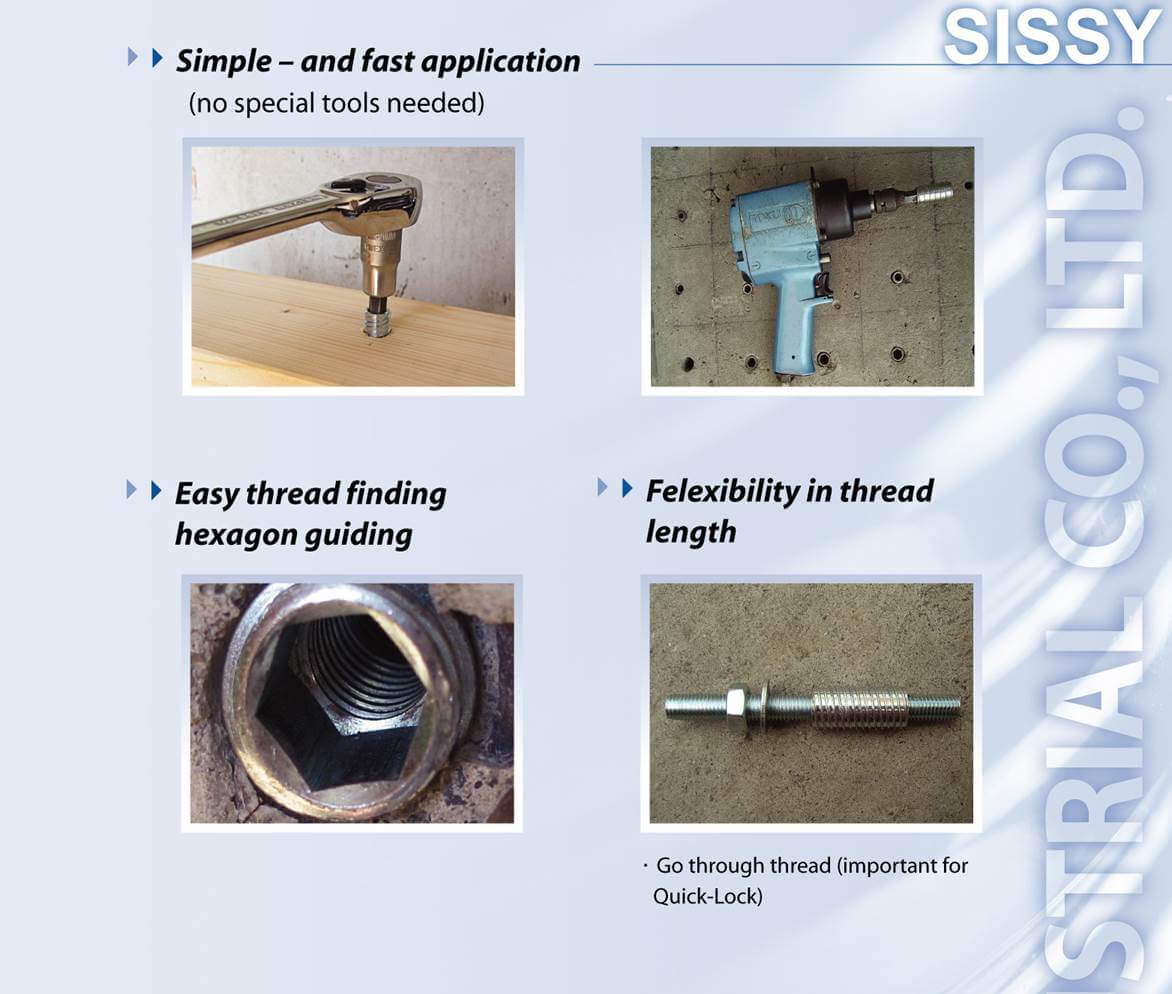

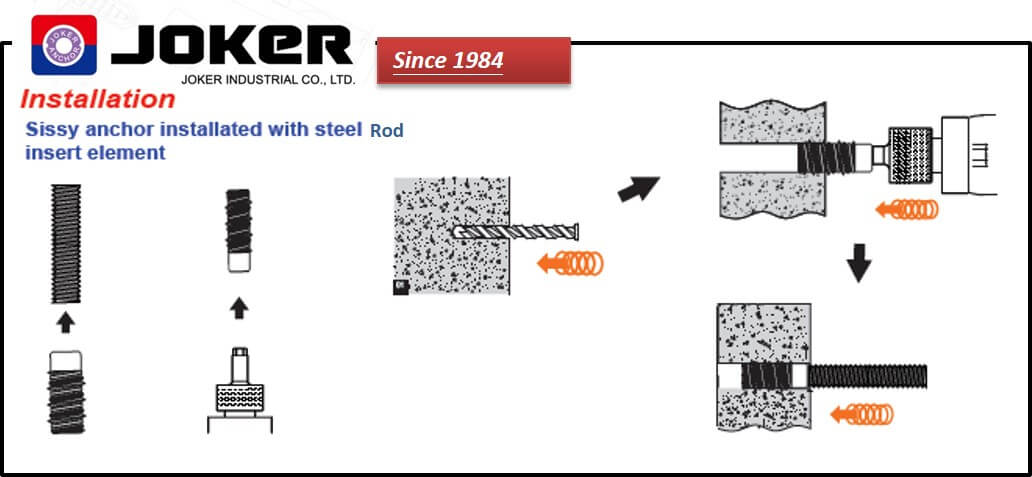

Easy installation by power impact wrench (No hammer required)
An alternative to a drop-in anchor and offers the advantage of a tension-free tightening
Close to the edge distances than traditional mechanical anchors
More corrosion resistant – ruspert coating

Light suspension/ Pipe support/ Conduit suspension
Fixation of crash barriers
Suspended lighting
Alternative to drop-in anchor and quick install
Fire proof

Base material

Concrete
Wood
Brick
