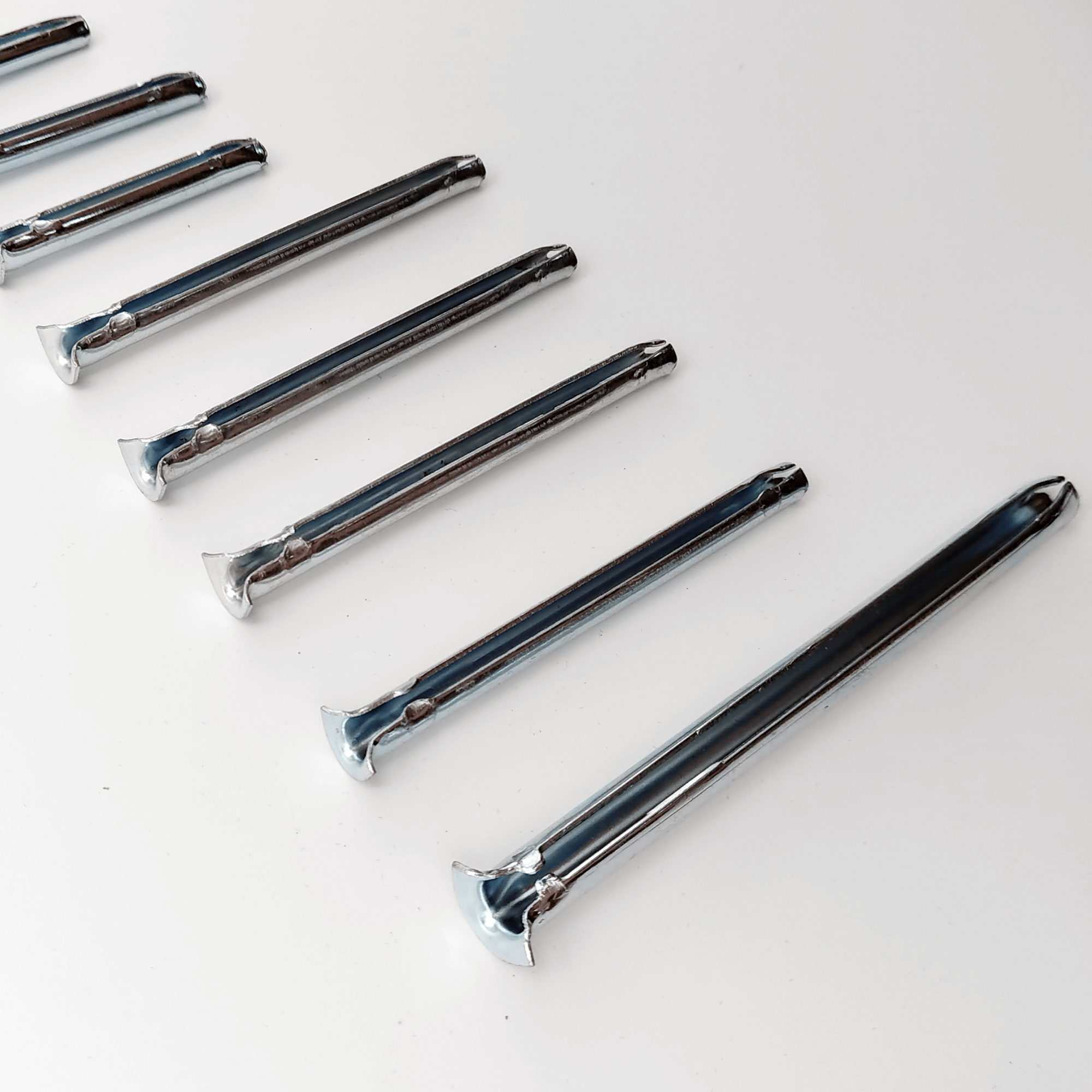

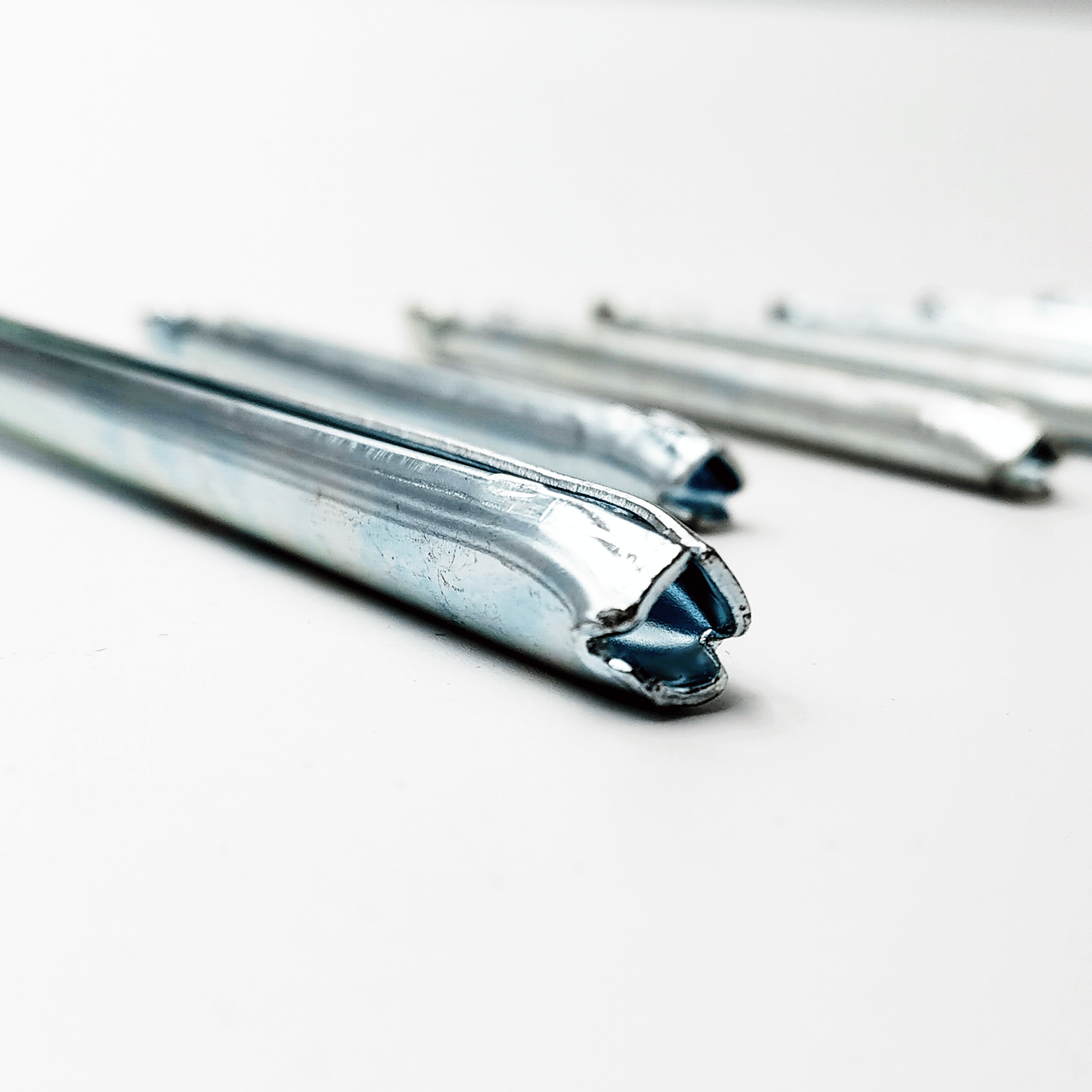

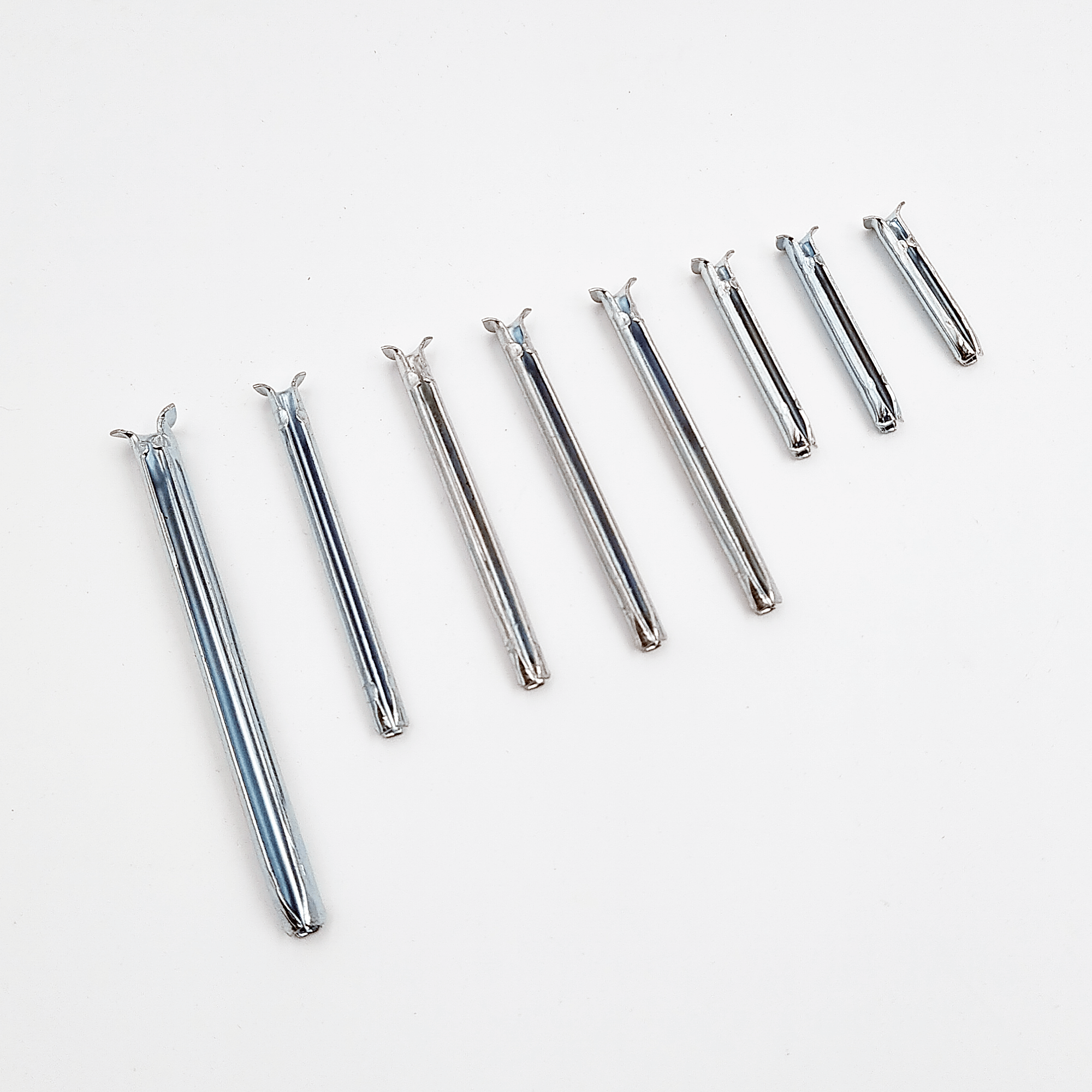

The Express Nail Anchor is economical fixing, hardened spring steel anchors and design of tapered end can be installed quickly. Easy to hammer-in the express nail into the drilled hole and there is no need screws. It is very suitable for timber, metal substructures and metal profiles.

CODE NO.
DRILL (mm)
LENGTH (mm)
USABLE LENGTH (mm)
EN5026
5
26
3
EN5040
5
40
10
EN5050
5
50
20
EN6030
6
30
3
EN6040
6
40
10
EN6050
6
50
20
EN6060
6
60
30
EN6080
6
80
50
EN8050
8
50
10
EN8070
8
70
30
EN8090
8
90
50
EN8110
8
110
70
EN8130
8
130
90
EN8150
8
150
110
EN8180
8
180
140
EN8200
8
200
160
  • Economical installation
  • No screw and plug require
  • Appropriate for overhead installation of insulation
  • Through fixing
  • Dry indoor applications
  • Rapid and secure installation
  • High strength
  • No protruding nail heads
  • Quicker and cheaper than using plugs and screws



  • wood/steel joists
  • sill installation
  • nailed battens for false ceilings



Building material

Solid, hollow brickwork, hard stone, concrete, hollow core concrete and wood
